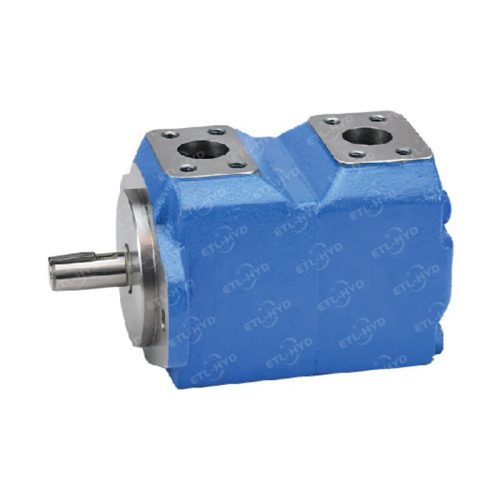

Eternal Hydraulic Vickers M Series Vane Motor
High-speed, high-pressure Danfoss M Series vane motors are field-proven to provide years of successful operation in elevator scraper drives, hydrostatic drives and many more auxiliary applications. They feature inlet/outlet ports that can be pressurized simultaneously while maintaining smooth operation. Vane motors offer an efficient and economical means of applying variable speed, rotary hydraulic power and offer variable horsepower (constant torque).
SPECIFICATIONS
| CC MIN DISPLACEMENT | 43.9 |
| CC MAX DISPLACEMENT | 317.2 |
| CID MIN DISPLACEMENT | 2.68 |
| CID MAX DISPLACEMENT | 19.35 |
| MIN CONT PSI | 500 |
| MAX PEAK PSI | 2500 |
| MIN CONT BAR | 34 |
| MAX PEAK BAR | 172 |
| MAX RPM | 4000 |
| MIN CONT TORQUE IN LBS | 1025 |
| INTERMITTENT MAX TORQUE IN LBS | 7470 |
| MIN CONT TORQUE NM | 115 |
| INTERMITTENT MAX TORQUE NM | 844 |
Features
- Dual-pressure plate increases operational efficiency
- Diametrically opposed inlet and outlet chambers reduce wear
- Modular design permits greater serviceability
- Low inertia of rotating parts results in smooth operation
- Flange or foot mounting options allow for application flexibility
APPLICATION
- Presses
- Aerial booms
- Primary metals
- Industrial power units
- Material handling machines
- Plastic injection molding machines
- Other medium-pressure industrial applications.
Advantages of Eternal Hydraulic Vane Pump/Motor
- Completely interchangeable with origina hydraulic vane pump with very competitive price
- 1 year of warranty
- Short delivery time
